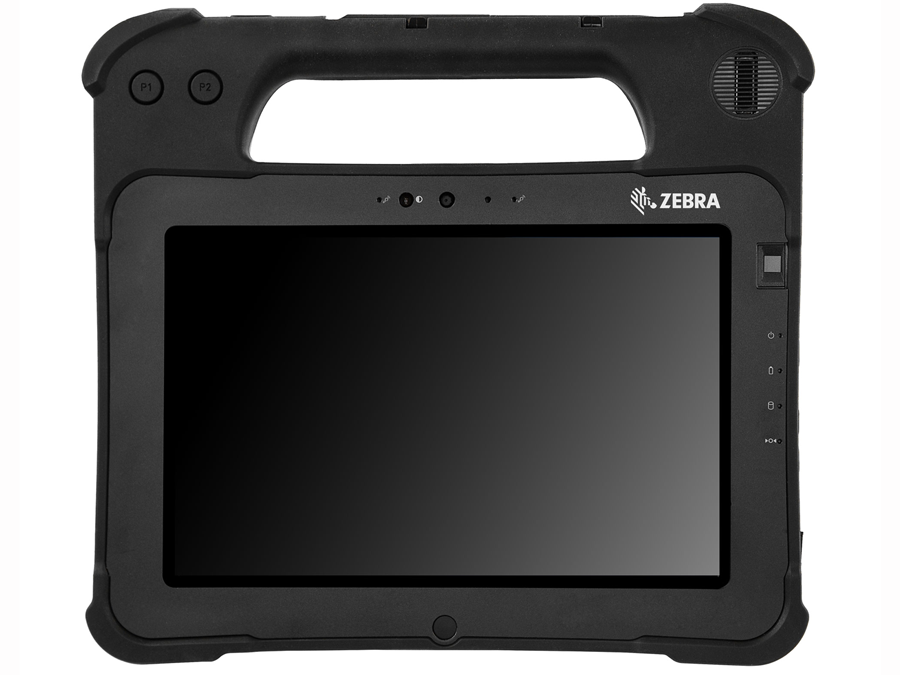

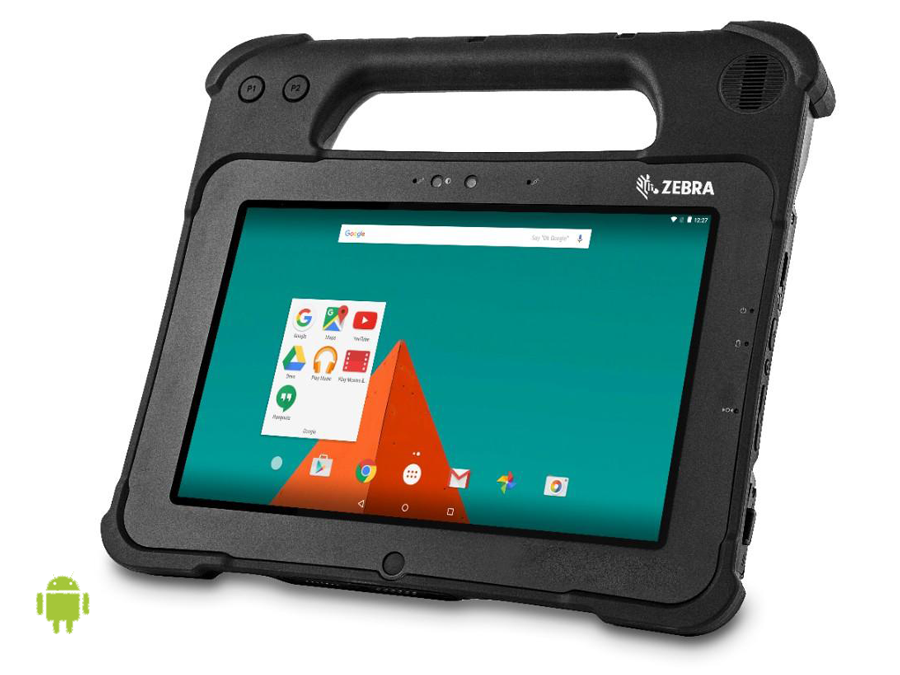

xPAD l10 rugged tablet Specifications/OPTIONS
Processor options
- Intel Pentium N4200
- 8th Gen Intel® Core™ i5-8250U
- 8th Gen Intel® Core™i5 vPro™-8350U
- 8th Gen Intel® Core™ i7 vPro™-8650U
Memory options
- 4GB LPDDR3 (N4200U only)
- 8GB LPDDR3 (N4200U & i5-8250U only)
- 16GB LPDDR3 (vPro only)
Storage options
N4200: 64GB, 128GB, 256GB, 512GB SATA SSD
i5 & i7: 128GB SATA SSD, 256GB PCle SSD, 512GB PCle SSD, 1TB PCle SSD
Display
- 10.1" 2K Resolution
- WUXGA 1920 x 1200 (16:10) - Standard 500 Nit Capacitive, or
- View Anywhere® 1000 Nit Capacitive, or
- View Anywhere® 1000 Nit with active Wacom® digitizer
- Damage Resistance with Corning® Gorilla® Glass 3
- Capacitive 10 point touch- Auto-sensing standard, glove & wet touch- Night vision mode supported
Ports
Docking connector
2 x USB 3.0
USB Type-C port (USB 2.0, USB 3.0, Display port out)
RJ-45 ethernet port
3.5mm audio output
Dual nano SIM (4FF)
Micro-SDXC
Cameras, Video & Audio
- 2MP front-facing camera
- 13MP rear-facing camera
- Intel High Def audio
- Realtek HD Codec
- RealTek noise cancellation
- Multi-directional array microphone - 2 microphones (2 front facing array mic, 1 front facing speaker)
Wi-fi / 4g lte/ gps standard
- Intel Dual Band Wireless-AC 8265 Wi-Fi plus Bluetooth® 4.2 (EDR + BLE)
- NFC
- Optional Internal Wireless (1 expansion slot) - Sierra Wireless EM7565, 4G LTE with GNSS (GPS + GLONASS + Galileo + Beidou)
or
- Discrete GNSS, Navisys Technology (u-blox) GPS + GLONASS with SBAS (WAAS, EGNOS and MSAS)
- Optional Pass-Through antenna includes 5 ports for MIMO WWAN, MIMO WLAN and GPS
Battery Life & Power
- Standard battery up to 10 hours of typical device usage
- Extended battery up to 27 hours
- Battery charge time - 2.75 hours with system off
- Hot swap feature comes standard
- Input voltage: 12-20V, AC adapter: 19V
environmental
- Operating Temp: -20° C to 60° C; MIL-STD-810G
- Storage Temp: -30° C to 70° C; MIL-STD-810G
- Drop Specs: MIL-STD-810G: 6 ft./1.83 m drops to plywood over concrete, 4 ft. drops to concrete
- Vibration: Minimum integrity non-operating, composite wheel operating; MIL-STD-810G
- Shock: 40 G operation; MIL-STD-810G
- Humidity: 3% to 95% non-condensing, -22° F to 140° F/-30°C to 60°C, 5 cycles of 48Hr; MIL-STD-810G
- Altitude: Operating: 50,000 ft./15,240 m; MIL-STD-810G
- Hazardous Environments: C1D2 for Hazardous Locations
integrated options
- NFC
- Optional 1D/2D barcode reader, or
- Optional True RS232 serial, or
- Optional HDMI-In, or
- Optional CAC / Smart Card reader
Graphics
N4200: Intel® UHD Graphics 505
i5 & i7: Intel® UHD Graphics 620
Exterior:
- Frame: Magnesium alloy internal frame with external elastomer corner bumpers
- Dimensions: 280.8 x 195.2 x 22 mm
- Weight: 1.3kg
Software
Windows 10 Pro 64 Bit
security
- Integrated Fingerprint reader
- TPM 2.0 chip for enterprise security
- Optional CAC / Smart Card Reader
Warranty
Subject to the terms of Zebra’s hardware warranty statement, the L10 is warranted against defects in workmanship and materials for a period of 3 (three) years from the date of shipment. For complete warranty statement, go to: http://www.zebra.com/warranty
